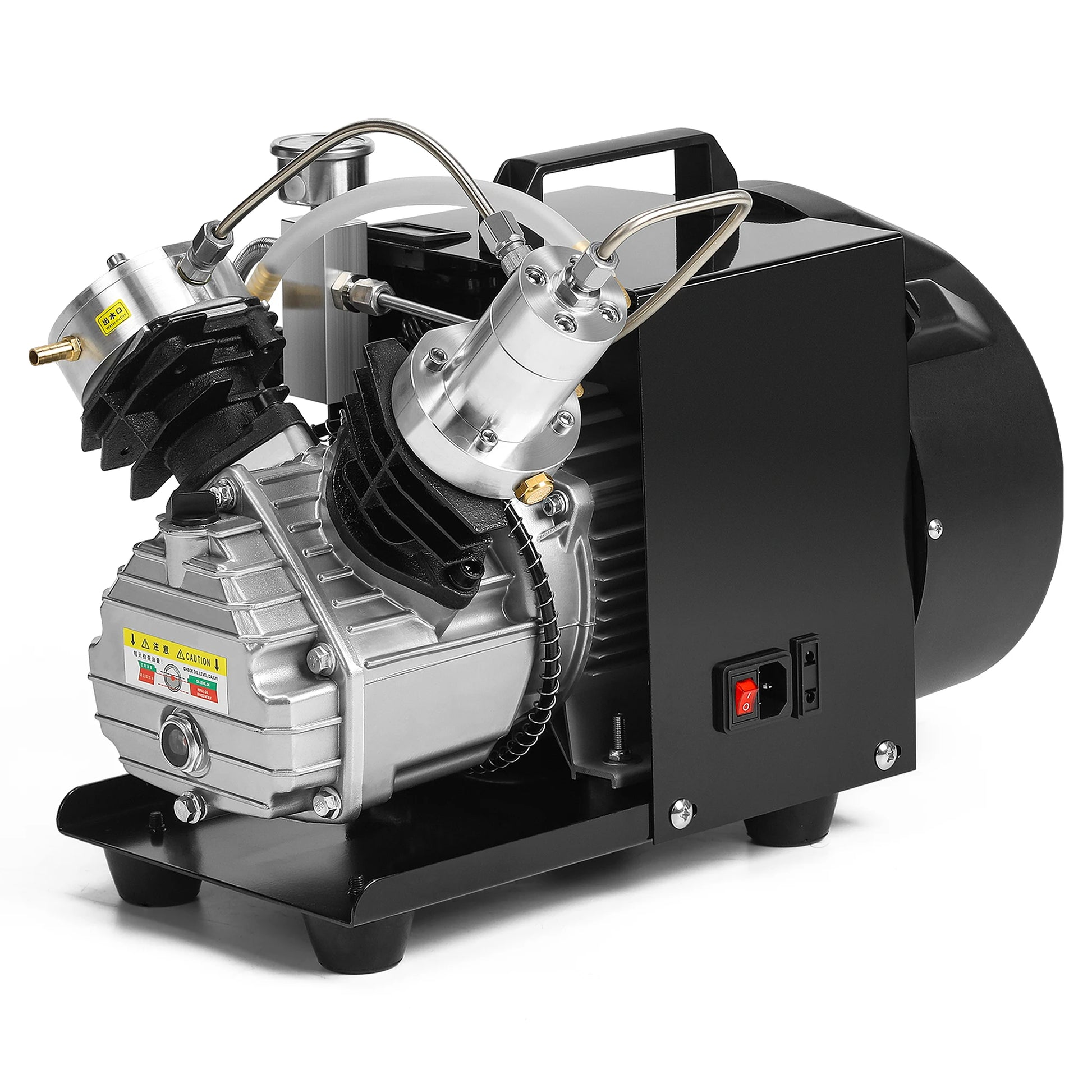

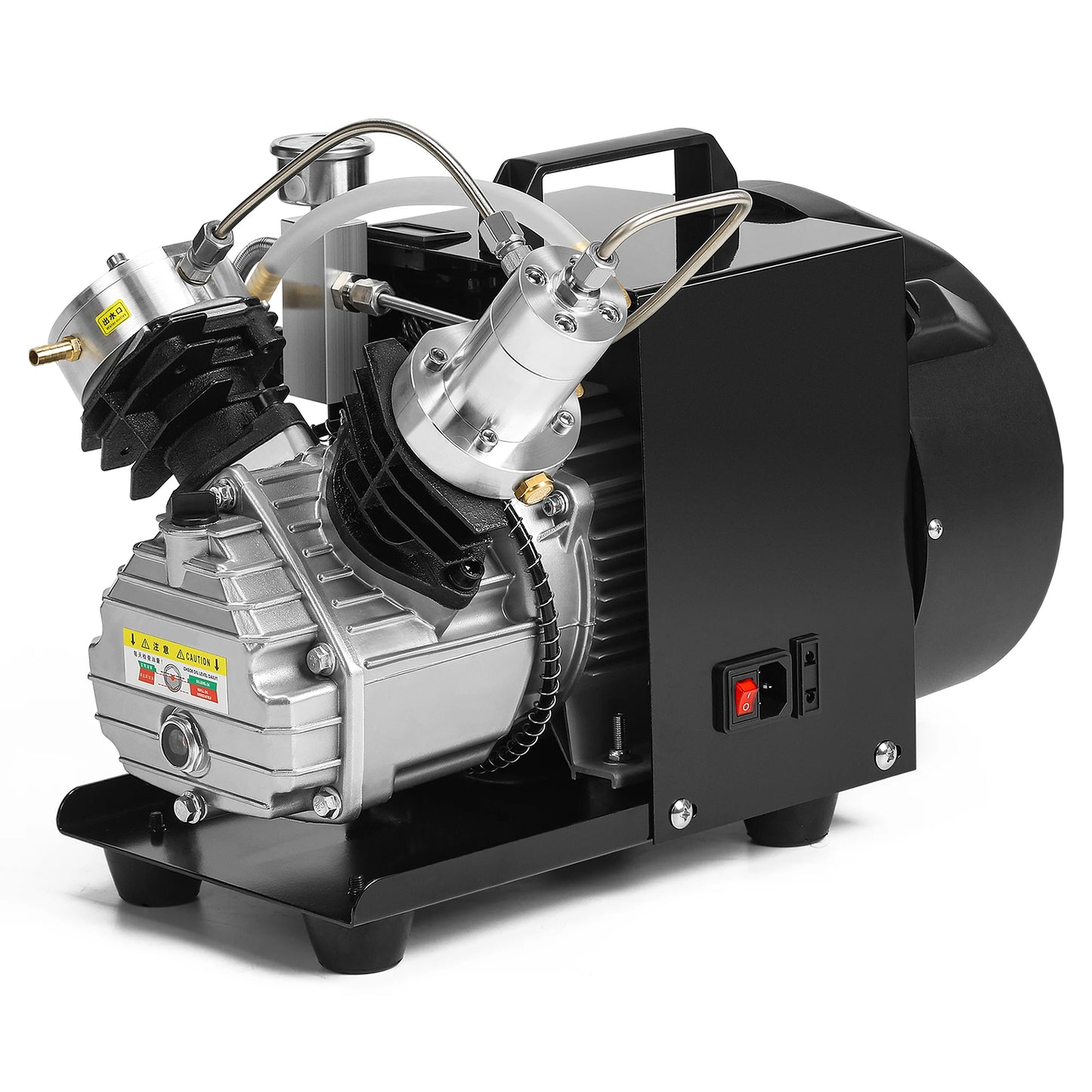

4500PSI MINI Portable PCP Air Compressor
TXEDM041 is two stage cylinder compressor heads,Fast filling speed,Suitable for filling large capacity tank.working pressure 300bar/4500psi/30mpa,inflating speed: 2800r/min.It is a water-cooled compressor, Designed with two-stage compression, which requires the use of water and oil,it can be used for diving,hunting,fire fighting, paintball,etc.

• shut down manually

• Fan and Water cooling

• Built-in Oil/Water Separator

• Fill 0-6.8L Cylinder


Specification

• Model:TXEDM041

• Item size: 46*36*37cm

• Weight：24kg

• Voltage: 220v/50hz,110v/60hz

• Power: 2200W

• Inflating Rate: 2800R/min

• Working Pressure: 30MPa/300Bar/4500Psi

• Tank Capacity:0-6.8L

• Compression Stage: Two-stage reciprocating

• Shut Down:manually stop

• Cooling: Fan and water cooling

• Lubricating Oil: ISO VG 46

• Oil Capacity：0.4L

•




  High Pressure Performance


  This compressor features a 2200W high-power copper motor and excellent inflation performance. The maximum working pressure is 4500PSI, the inflating rate is 2800R/min, and the flow rate is 40L/min.


•




  Two Stage Piston Cylinder Head


  Designed with two-stage compression to ensure stable performance,Fast filling speed,Suitable for filling large capacity tank,


  0.5L from 0-4500psi about 3--5min.

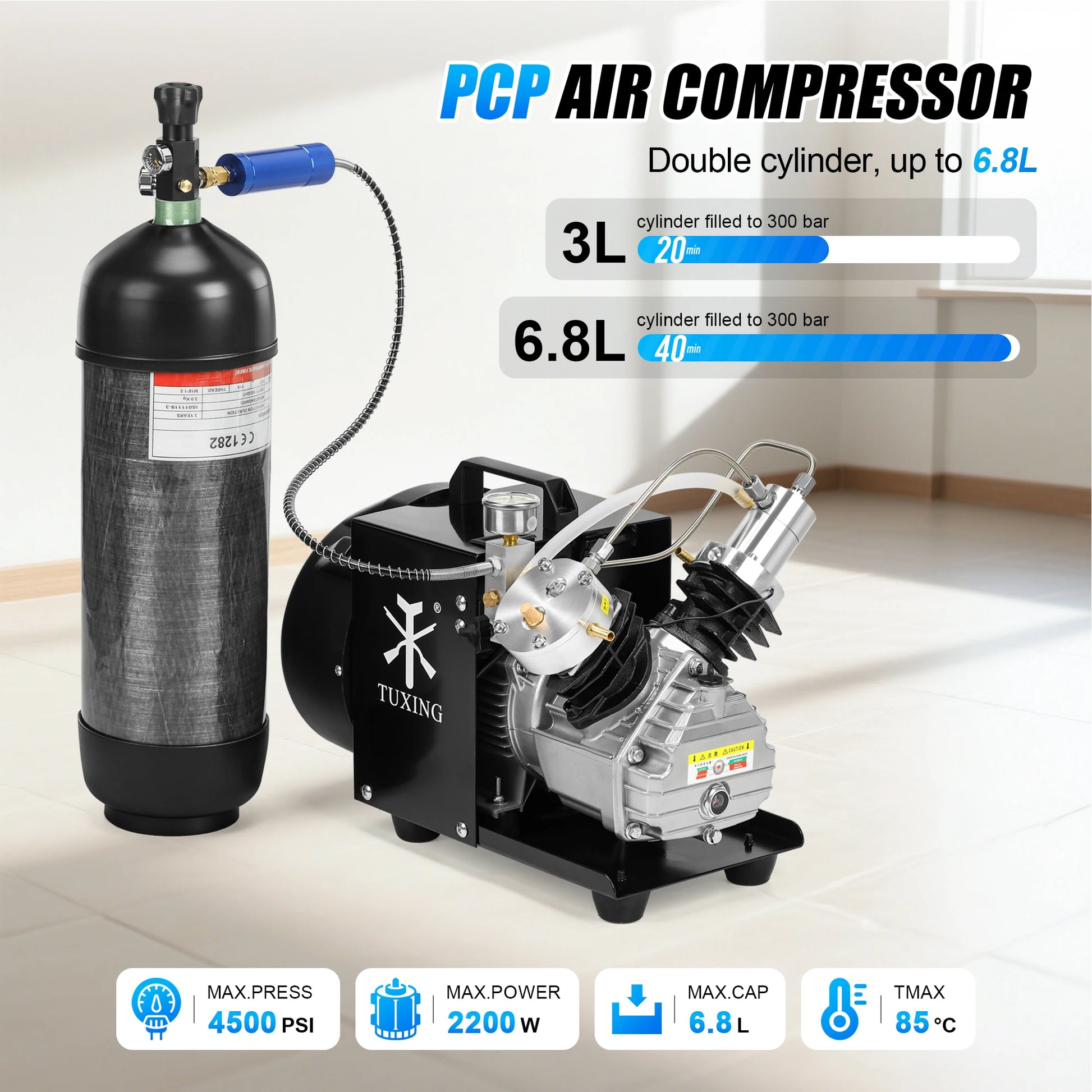

  6.8L from 0-4500psi about 30-45min.


•




  Easy to Carry




  The compressor is designed with a convenient handgrip, effortless to carry and move. Stainless steel cylinder also provides stable and high-quality performance for you.

  Provides powerful help for your outdoor life


•

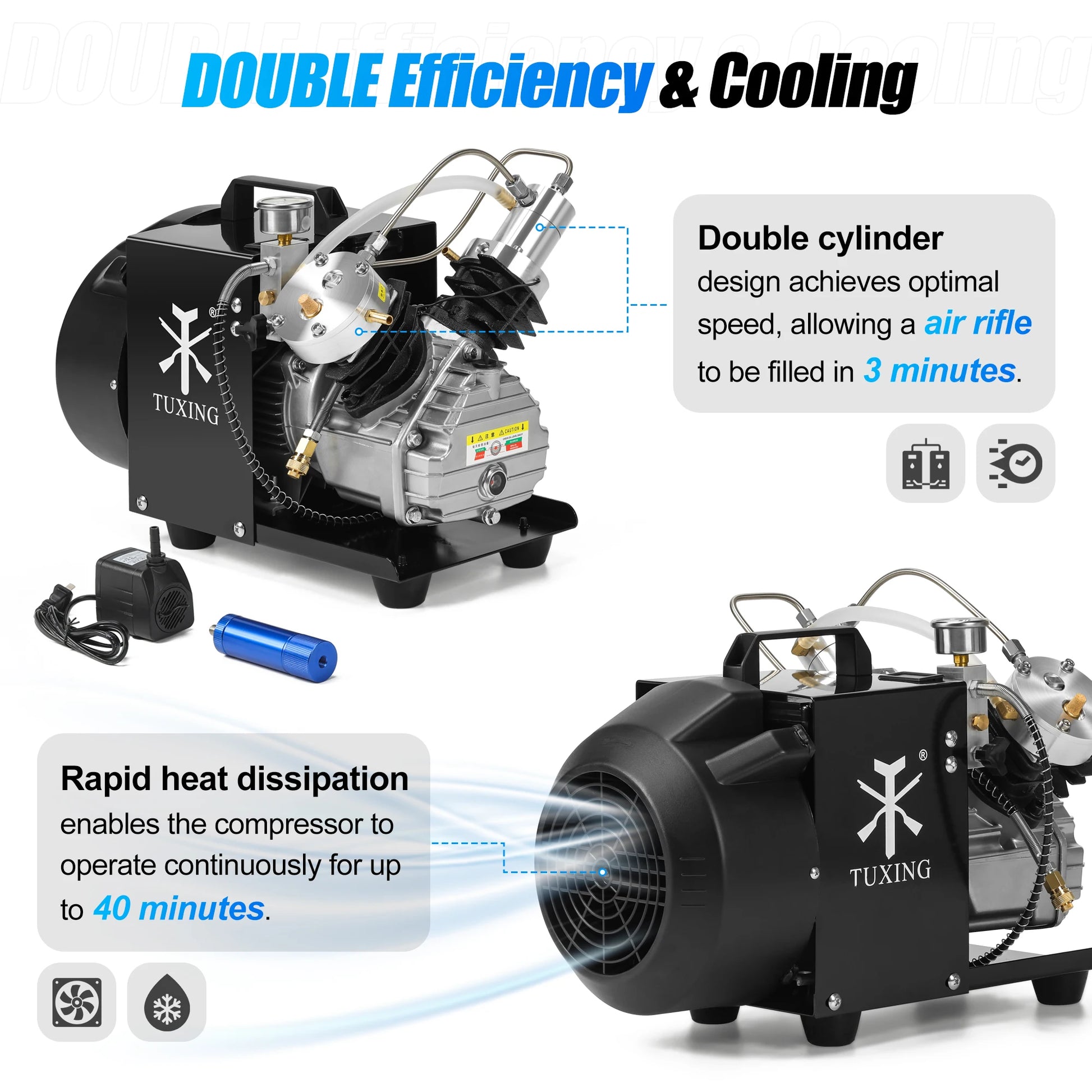

  Fan Water Cooling Heat Dissipation


  It is cooled by water and fan; it has a fast heat dissipation performance.effectively protect the motor of the compressor to dissipate heat, and prolong the service life of the compressor.The Maximum temperature is 85℃.

•




  Pushing Rods Structure


  Z shape piston rings

  wear resistant

  Cooper material,Easy maintenance


•




  Wide Application


  This pcp/scuba compressor features oil and water separator filtration. Clean air will be discharged by the machine, suitable for the mini diving bottle, PCP rifle, paintball tank, air pistol, paintball air rifle, fire fighting, leakage detecting, pressure-tight test, air impermeability test, etc.

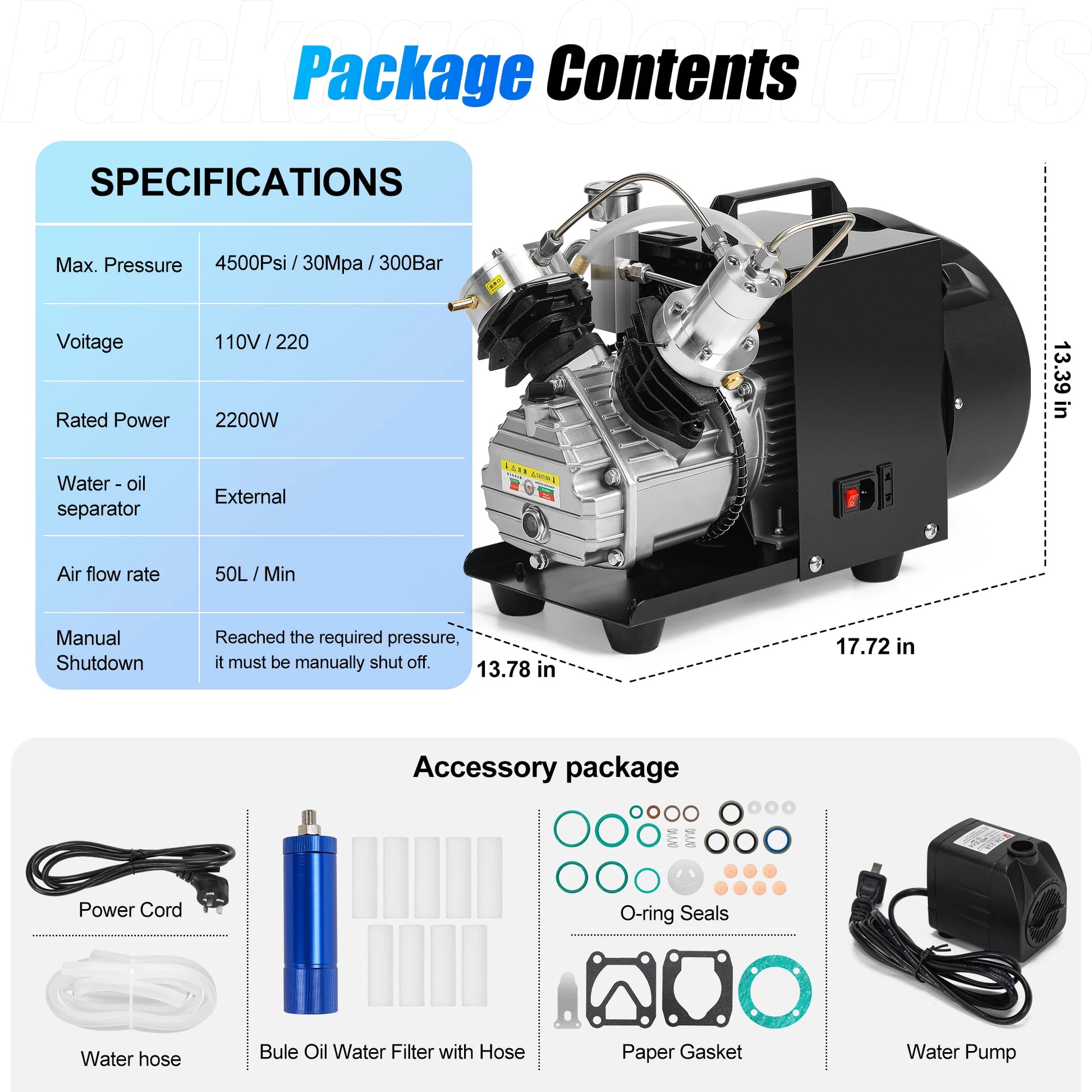

Package Content

• 1 x PCP Air Compressor

• 1 x Water Pump

• 1 x water Pipe

• 1 x Home Power Line

• 1 x Oil Plug

• 1 x Oil/Water Separator

• 1 x Filter Cotton

• 1 x Air Outlet Hose

• 1 x Repair Kit(vulnerable parts)
